Features a unique twin rail design to ensure strength when lifting heavier clients
They are equipped with wheels which makes it easy to move between rooms
Can be assembled without tools

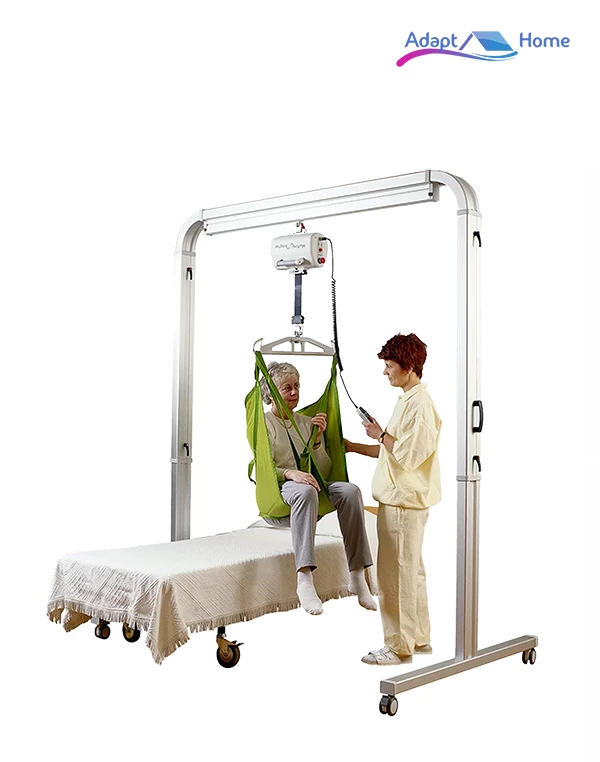

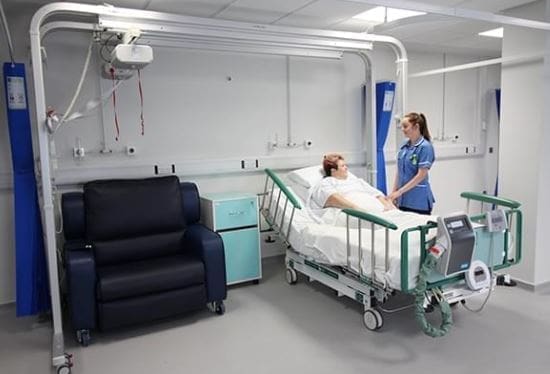

The Liko FreeSpan portable gantry hoist system is equipped with lockable wheels that improve positioning for specific tasks and enable portability. The FreeSpan gantry system is a flexible patient hoist solution for most transfer situations up to 250 kg. The lift system is freestanding (gantry). Since it is not affixed to the building structure, there are no special strength requirements for walls and ceilings.
The FreeSpan straight rail gantry is made of lightweight aluminium. Many different rail lengths are available. It can be fitted with either a Likorall Multirall or Likorall lift motor. The Liko FreeSpan is also available in a traverse model. The Liko FreeSpan Traverse is a freestanding system that enables the lifting and transfer of patients between many different lifting points. Essentially it is a freestanding XY hoist (H track).
FreeSpan gantry hoist features
Max. load: 200-250 kg / 440-550 lbs
400 kg / 880 lbs with LIko UltraTwin
Liko FreeSpan leg supports
Parking Unit
Pre-fitted carriage
Span width: 2.0-3.2m / 6’6″ – 10’6″
The individual’s risk assessment and care plan for hoisting should specify
Which hoist to use for which task
Type and size of sling and any configurations of loops or leg attachments
Use of additional safety devices such as safety belts
Number of carers needed to carry out the task
Include any other relevant information specific to the person being hoisted
You must communicate this information to staff and keep it accessible for easy reference. It is common practice to include assessments in individual care plans or profiles and provide an additional quick reference guide in a convenient place.
