Ares 5 160KG Profiling Air Mattresses

Ares 5 160KG Profiling Air Mattresses

Designed to prevent pressure sores in vulnerable patients. It offers two modes: alternating and static mode

    160kg weight limit

    Low-pressure alarm

    Dual therapy modes

    Flame retardant

    Multi-functional cover

    Strong quality materials

Have any Questions? Call 020 3976 8808

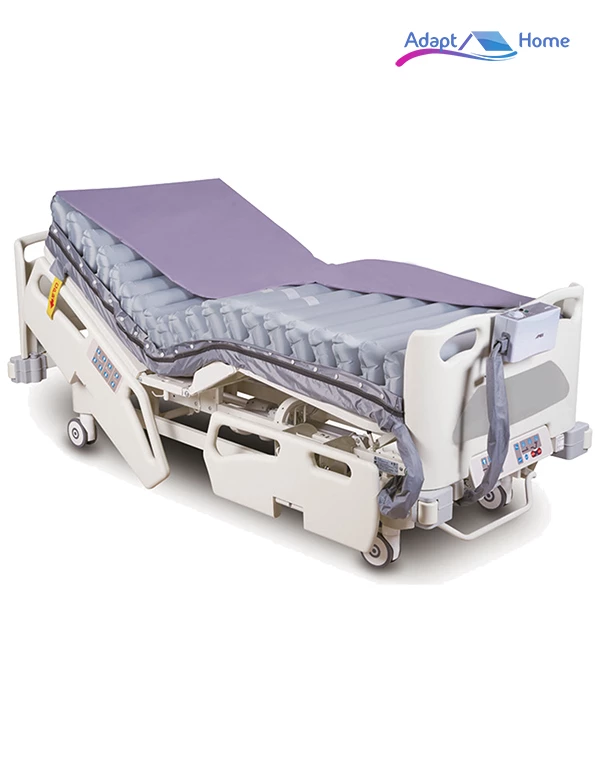

The Ares 5 alternating pressure redistribution air mattress replacement system is designed for patients vulnerable to pressure injuries, it helps users prevent pressure sores. The air pump allows you to select two different modes: in alternating mode, this pressure redistribution air mattress can continuously and sequentially inflate air cells to achieve periodic pressure relief, while in static mode, it inflates all the air cells equally for a static mattress surface, allowing caregivers to conduct nursing activities.

What’s the difference between the two cover options?

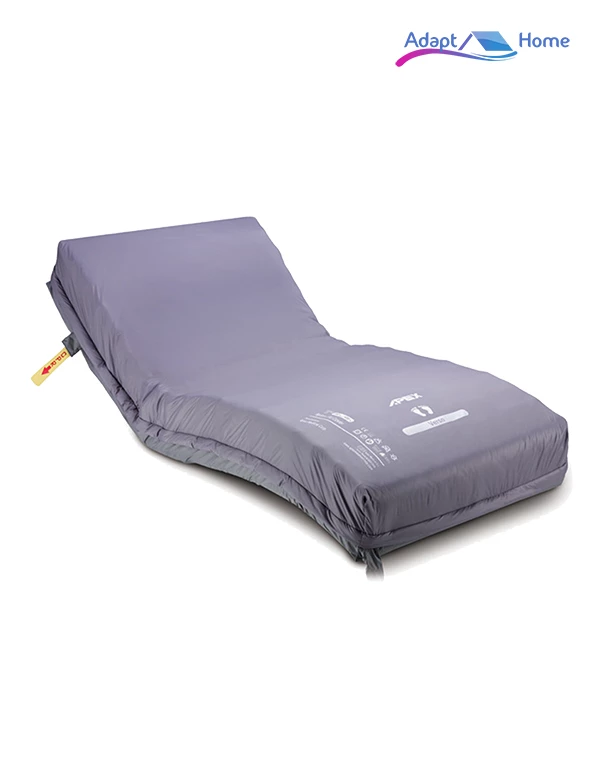

There are two different coverings available for the same price. Please select the desired option from the drop-down menu above. The two options are:

  • The nylon polyurethane cover is quilted for patient comfort and can effectively wick away moisture from the surface to aid in microclimate management. It can be washed at 60°C
  • The 4-way stretch polyurethane cover, which is highly elastic, offers reduced friction and minimises shear force. It can be washed at 95°C

Key benefits and features of the Ares 5 Air Mattress replacement system

  • Prevents the formation of bedsores and provides exceptional levels of comfort
  • The quick connector between the mattress and air filter comes with a cap for sealing the pressure during transport, providing a stable patient transportation surface for up to 8 hours

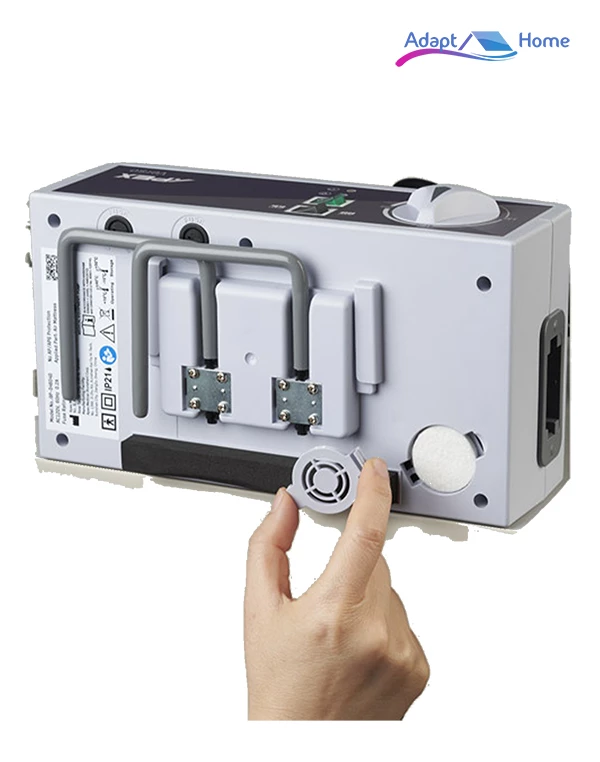

  • The antimicrobial filter removes bacteria and viruses from the air that is used to inflate the air cells
  • Considerably low-pressure range applied to the patient, from 30 to 60 mmHg in both therapy modes
  • Provides a constantly comfortable perception while still retaining sufficient support for the patient
  • Flame retardant materials help improve fire safety
  • CPR strap allows you to rapidly deflate the mattress in the event of an emergency
  • Air cells are 8″ long for better immersion and enhanced pressure care performance
  • A low-pressure alarm warns you with a visual LED alert if there are any problems, such as disconnections or leaks

What material Is the Ares 5 Air Mattress replacement system made from?

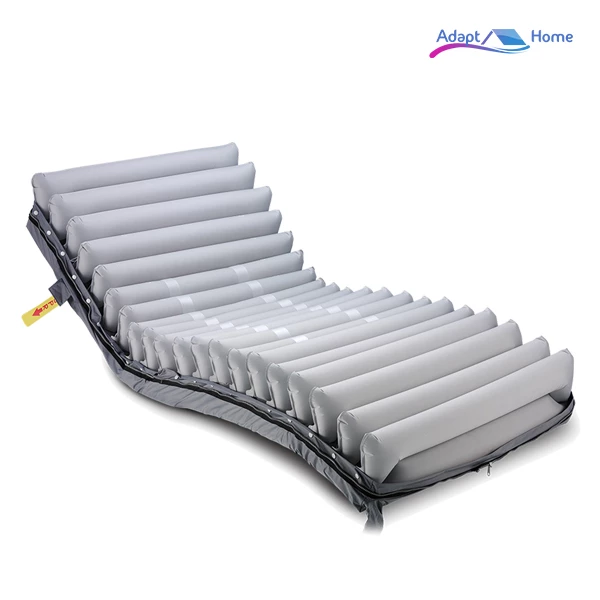

  • The air cells are constructed from durable, lightweight nylon polyurethane material with high resistance to mechanical tears
  • All materials are compatible with REACH and RoHS standards

Who can benefit from pressure redistribution systems?

  • Pressure redistribution systems primarily help people who are at risk of developing bedsores, otherwise known as pressure ulcers
  • It’s estimated that close to half a million people in the UK will develop a pressure ulcer in any given year
  • 5% of people who are admitted to the hospital with a sudden illness will develop a pressure ulcer
  • People over 70 years old are particularly vulnerable to pressure ulcers, as they are more likely to have mobility problems and ageing skin

How reliable is the Ares air mattress replacement system at redistributing pressure?

This mattress replacement system was tested using the Pressure Redistribution Index while in alternating mode, it was under 32mmHg for 100% for the entire 30-minute period. Even in static mode, the pressure redistribution index remained below 60mmHg. In simpler terms, this product is superb at redistributing pressure to prevent bedsores and other pressure-related injuries.

If you’re in a hospital or care home, your healthcare team should be aware of the risk of developing pressure ulcers. They should carry out a risk assessment, monitor your skin and use preventative measures, such as regular repositioning.

Mattress Specification

  • Type: 5″ Overlay
  • Dimension: 200 x 85 / 90 x 12.7 cm
  • Cell Height: 5″ x 17 cells

  • Alternating: 1 – in  – 2
  • Weight : 5.2 kg

  • Cover Material: 4-Way Stretch PU
  • Cell Material: Nylon / PU
  • Maximum Patient Weight: 160 kg
  • Flame Retardant Standards: EN 597 -1; En 597-2

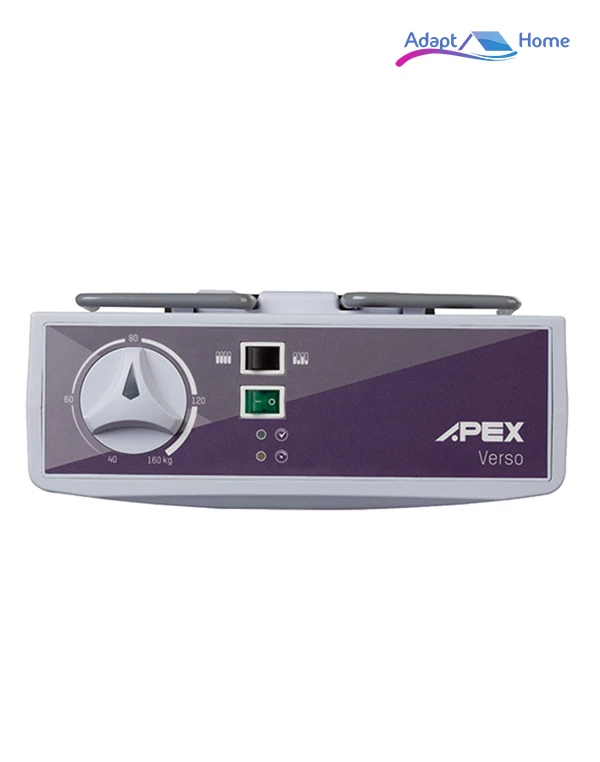

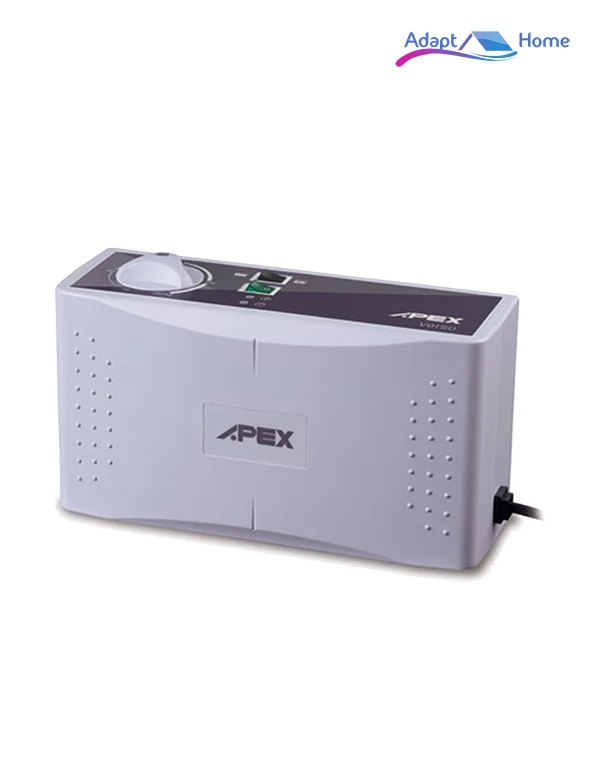

Pump Specification

  • Dimension: 25 x 13.5 x 9.5 cm
  • Weight: 1.76 kg
  • Case Material: Flame retardant ABS
  • Supply Voltage: AC 220 – 240V, 50Hz
  • Operating Cycle: 9.6 mins (50Hz) / 8 mins (60Hz)
