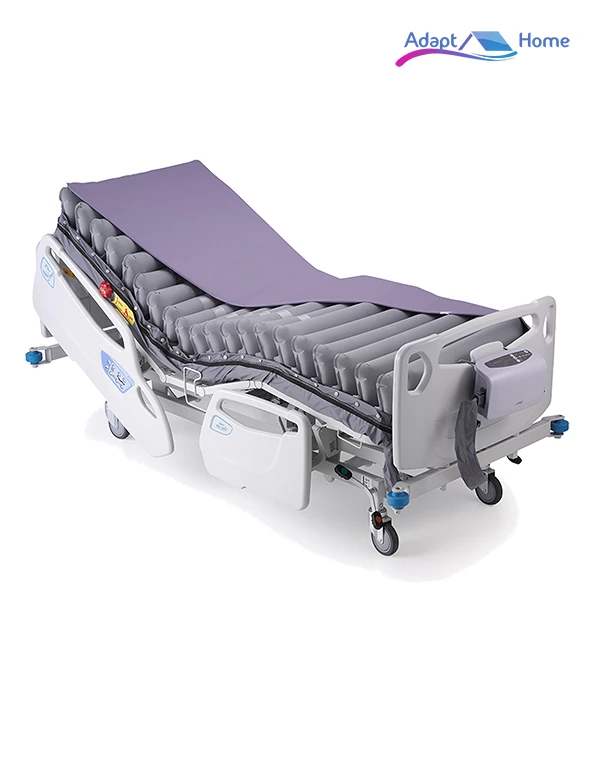

Full alternating mattress replacement system for high-risk pressure care patients
Provides excellent pressure care suitable for acute and community care settings
The intuitive weight setting function allows carers to set the mattress according to the patient’s weight

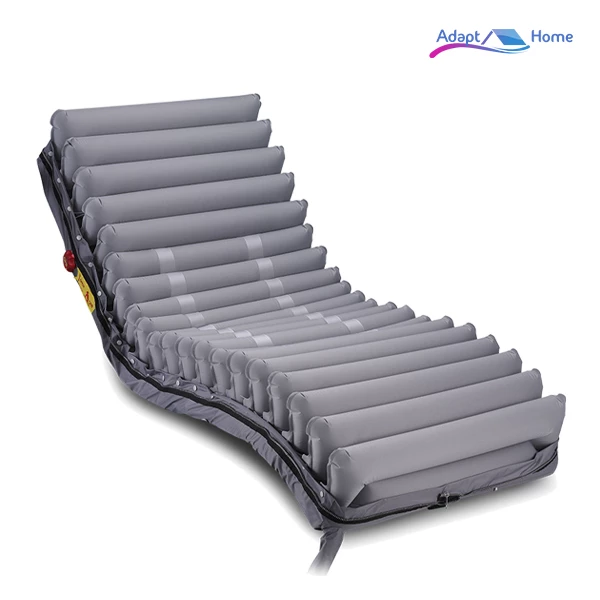

The cell-on-cell design offers the patient higher levels of support and comfort throughout alternating cycles
Equipped with alternating, static, max firm and seat inflate modes for highly versatile care
Specifications
Maximum Patient Weight: 250kg
Mattress Weight: 60.9kg
Mattress Dimensions (LxWxD): 200 x 80/85/90 x 20.3cm
Cover Material: Four-way stretch

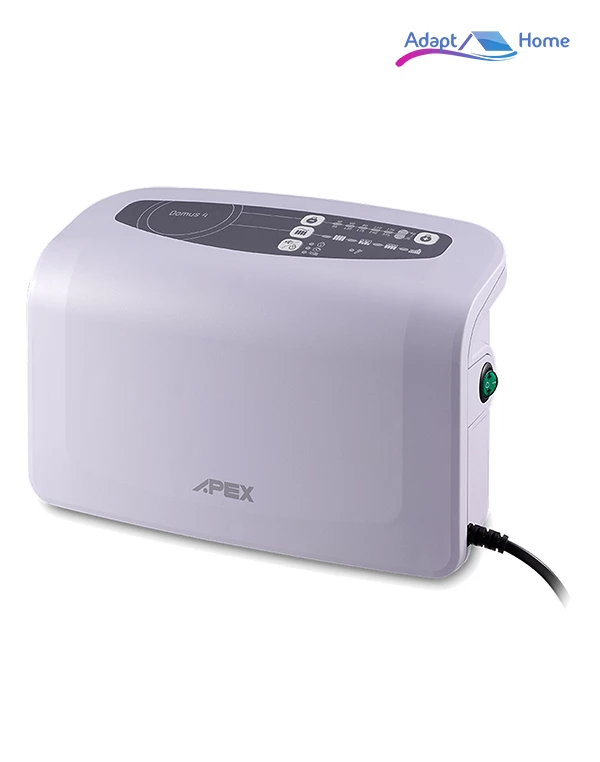

Pump Dimensions (LxWxD): 29 x 18.5 x 12.6cm
The Ares 4 Mattress is one of the advanced systems in the Ares series. The digital multi-mode pump does not only offer alternating pressure redistribution but also has a static mode with constant low-pressure reduction. In alternating mode, the pressure is periodically redistributed by inflating and deflating cells to mimic natural sleep movement patterns and avoid long-term pressurisation of tissue. In constant static mode, the pressure is about 2/3 lowered compared to the same pressure level from alternating mode utilising immersion and envelopment.
When patients are at significant risk of pressure sore development, complete replacement mattresses that feature alternating air therapy must be used, but these can often be prohibitively expensive. The Ares 4 Pressure Relief Alternating Air Mattress Replacement System is designed to provide high levels of support and relief and includes features that are normally only found in much higher specification mattresses. This mattress allows for easy control by a carer with its intuitive weight settings and is an ideal cost-effective option for those at high risk of pressure sore development.
Range of cell modes
The Ares 4 Mattress is equipped with a multitude of different modes of operation, making it highly capable for its price. These modes include:
Alternating therapeutic mode: continuously and sequentially inflates and deflates air cells for excellent pressure redistribution
Seat inflate mode: Increases pressure when the patient is sitting upright to provide ideal support for the sacral area
Max firm mode: Hyper-inflates all cells to provide a stable surface for transfers and other nursing procedures. This mode will revert back to alternating therapeutic mode after 20 minutes for patient safety.
Static mode: An immersion process that addresses areas of especially high contact pressure. By reducing one-third of pressure across the entire surface of the mattress, body mass is redistributed over a greater surface.
Key Features
Full alternating mattress replacement system for high-risk pressure care patients
Provides excellent pressure care suitable for acute and community care settings
The intuitive weight setting function allows carers to set the mattress according to the patient’s weight
The cell-on-cell design offers the patient higher levels of support and comfort throughout alternating cycles
Equipped with alternating, static, max firm and seat inflate modes for highly versatile care
Provides dynamic comfort and skin breakdown prevention with alternating therapy
Air cells are modular and independently removable to aid with infection control
Static cells at the head end help to provide additional patient stability
CPR toggle at head end to allow for quick response in the event of an emergency
Cable management system helps to eliminate tripping hazards from the area
Anchoring straps allow for secure attachment to the existing bed frame
Transport mode with simple click-in design for easy use and cleaning
Head up control panel allows access for the carer from all positions
Low pressure and power failure alarms alert carers of important faults
Lock-out mode prevents settings changes and unwanted tampering

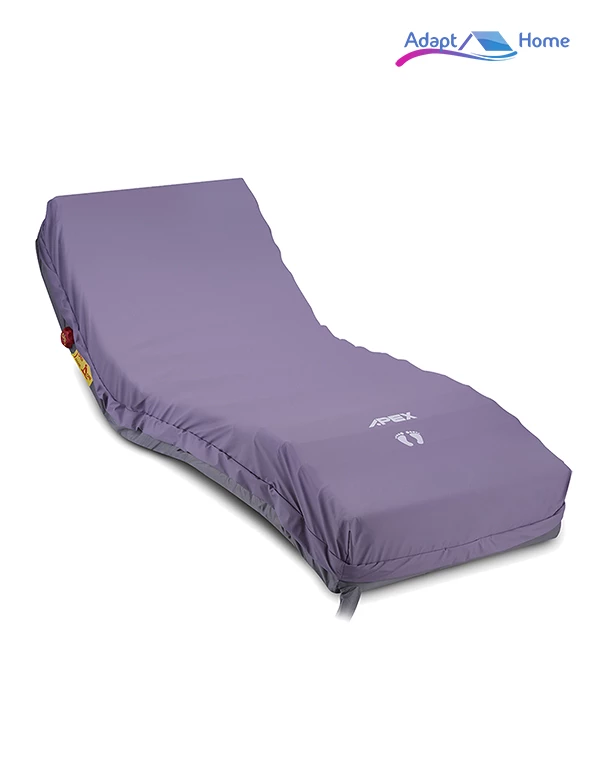

Vapour-permeable cover is included to protect the mattress and aid in infection control
Cover includes a 360° zip and non-slip base for hygiene and stability
Technical Information
Maximum Patient Weight: 250kg
Mattress Weight: 60.9kg
Mattress Dimensions (LxWxD): 200 x 80/85/90 x 20.3cm
Cover Material: Four-way stretch
Cell Material: Nylon TPU
Pump Dimensions (LxWxD): 29 x 18.5 x 12.6cm
Pump Weight: 2.2kg
Pump Case Material: Flame retardant ABS
Pump Wattage: 34.5W
Supply Voltage: AC 200 – 240V/50Hz;
Flame Retardant Standard: EN 591-1, EN 591-2
