AAH Lite Portable Ramp

The lightweight portable ramp folds for compact storage & features a flat hinge.

    450kg weight capacity

    Anti-slip excellent grip

    Available in various sizes

    Very lightweight

    Lightweight & folding

Have any Question? Call 020 3976 8808

For AX6 other specifications are available
Length 60cm (2′)
Ramp Width * 76cm (30″)
Lip Width 71.4cm (28.1″)
Capacity 450kg (63st)
Weight 4.9kgs (11lbs)
Stored Dimensions LxWxD 60 x 39 x 8cm (24 x 15 x 3ins)

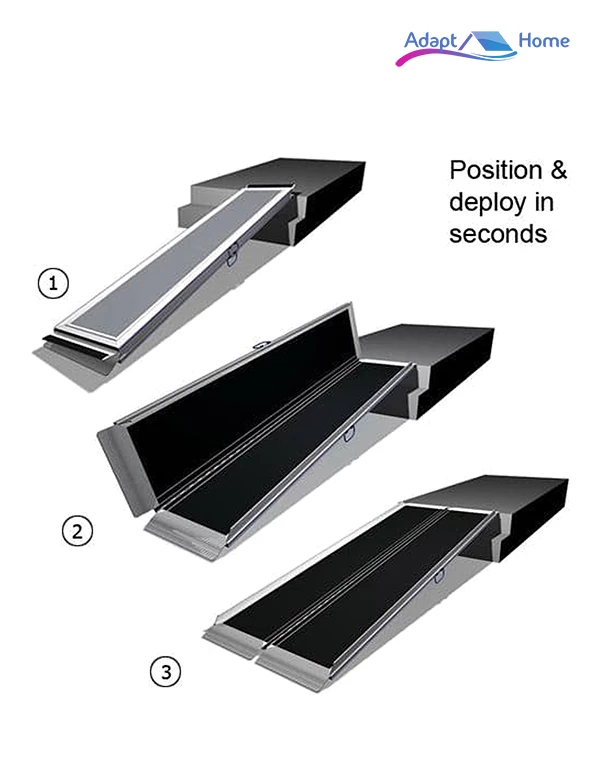

Quick and easy to deploy, the lightweight AAH Lite portable ramp is an all-around winner in real-life situations. Since its introduction in 2003, the original style of the AAH Lite has seen many improvements and is also available as high-rise and up-and-over kits. Very lightweight.

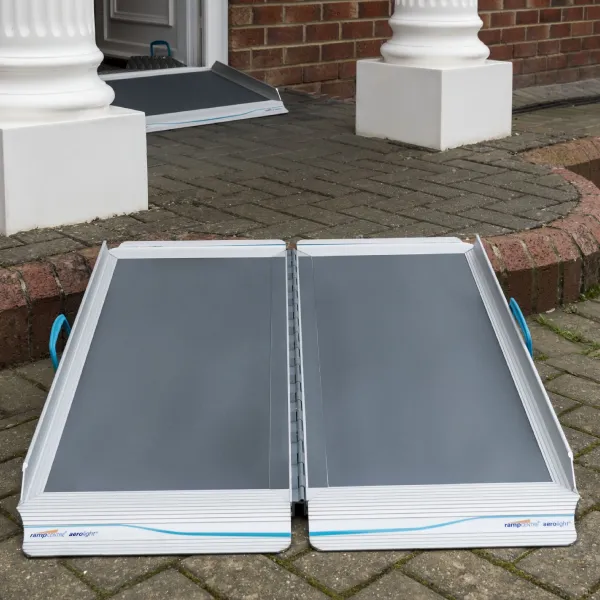

Folds and clips together for convenient, compact storage. Has flat hinge underneath for the best possible step clearance. Contrasting colour edge strip increases visibility.

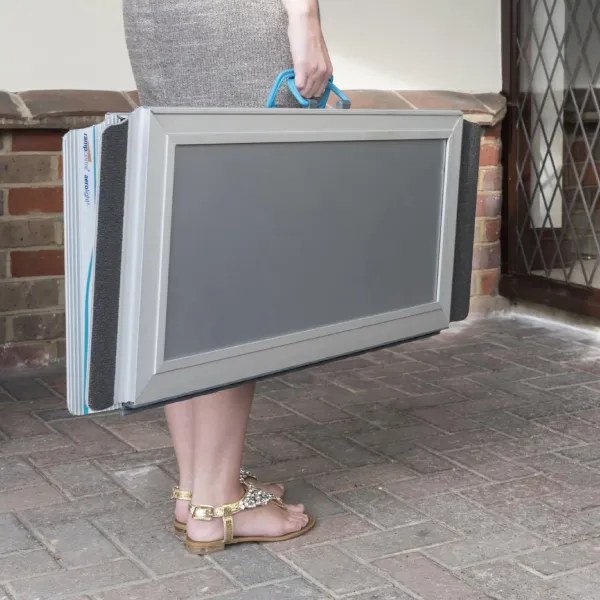

It is very easy to carry and deploy. A full-width anti-slip surface provides excellent grip. Grip surface folds inside when stored and carried for protection and ultimate safety when carrying and deploying. Internal threshold ramp accessory available for bridging up and over uPVC thresholds; see Doorline-Multi.

Use the special AAH Lite joining accessory for even longer, full-width portable ramps.

  • Easy to walk on a full-width grip surface
  • Simply deploy either way around
  • Custom sizes are available across the entire range – please ask for details
  • NEW modern “WOW” look!
  • A NEW special tapered lip shape now fits into narrow doorways, with openings as narrow as 28.1”/714mm and facilitates entering the ramp from an angle!
  • NEW unique reflective lip feature for increased safety in low light situations
  • Highest ever strength-to-weight ratio, now up to 450kg capacity
Length Ramp Width * Lip Width Capacity Weight Stored Dimensions LxWxD
AX6 60cm (2′) 76cm (30″) 71.4cm (28.1″) 450kg (71st) 4.9kg (11lbs) 60 x 39 x 8cm (24 x 15 x 3ins)
AX9 90cm (3′) 76cm (30″) 71.4cm (28.1″) 450kg (71st) 6.6kg (15lbs) 90 x 39 x 8cm (35 x 15 x 3ins)
AC12 120cm (4′) 76cm (30″) 71.4cm (28.1″) 400kg (55st) 8.6kg (19lbs) 120 x 39 x 8cm (47 x 15 x 3ins)
AC15 150cm (5′) 76cm (30″) 71.4cm (28.1″) 350kg (55st) 10.4kg (23lbs) 150 x 39 x 8cm (59 x 15 x 3ins)
AC18 180cm (6′) 76cm (30″) 71.4cm (28.1″) 350kg (55st) 12.3kg (27lbs) 180 x 39 x 8cm (71 x 15 x 3ins)
AC21 210cm (7′) 76cm (30″) 71.4cm (28.1″) 300kg (47st) 14.2kg (31lbs) 210 x 39 x 8cm (83 x 15 x 3ins)
AC24 240cm (8′) 76cm (30″) 71.4cm (28.1″) 250kg (39st) 16kg (35lbs) 240 x 39 x 8cm (98 x 15 x 3ins)
* Ramp width excludes handles
